PL155-P(G)

κωδικός προϊόντος: PL155-P(G)

Κατασκευαστής: AimTTi


Εκδήλωση Ενδιαφέροντος

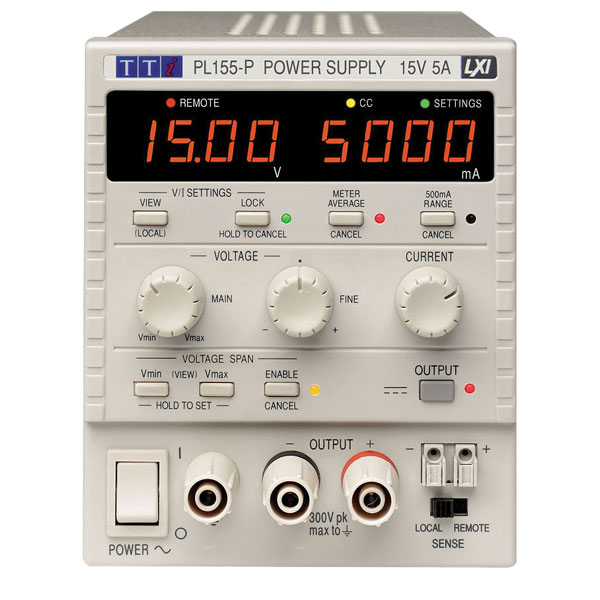

 Bench/System Linear Regulated DC Power Supply Single Output, 0-15V/0-5A USB, RS232, LAN(LXI), Analogue and GPIB interfaces

  • Single, dual or triple output models
  • Models from 6V/8A up to 60V/1.5A
  • Linear regulation - for the best performance
  • Ultra-compact design - uses up less space
  • True Analogue controls - for ease of use
  • S-Lock function - instantly lock settings
  • V-Span function - customize the voltage range
  • Low current range and current meter averaging
  • DC output switches and "view limits" button
  • Selectable remote sense terminals
  • Independent, Isolated Tracking, Ratio Tracking  and True Parallel modes on dual & triple models
  • High current low voltage output on triple output model

P Version adds:

  • RS-232, USB and LAN (Ethernet)
  • LAN Interface conforms with LXI standard
  • Analogue remote control of V and I (single output  models only)
  • Front and rear terminals​

P(G) Version is as P version above plus GPIB interface

Κατεβάστε το PDF με τα τεχνικά χαρακτηριστικά
