2635B

κωδικός προϊόντος: 2635B

Κατασκευαστής: Tektronix/ Keithley


Εκδήλωση Ενδιαφέροντος

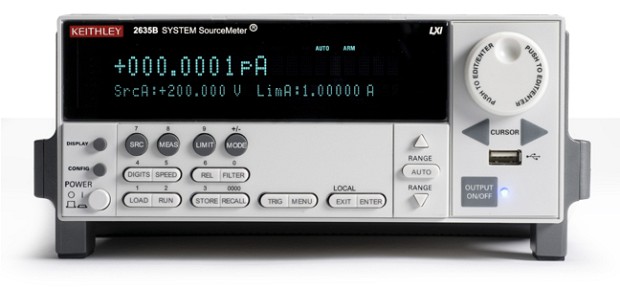

Single Channel System Source Meter

Channels: 1 , Max Current Source/Measure Range: 10A ,Max Voltage Source/Measure Range: 200V, Measurement Resolution (Current / Voltage): 0.1fA/100nV, Power: 200W

         Key Features:

  • Tightly integrated, 4-quadrant voltage/current source and measure instruments offer best in class performance with 6½-digit resolution
  • Family of models offer industry’s widest dynamic range: 10 A pulse to 0.1 fA and 200 V to 100 nV
  • Built-in web browser based software enables remote control through any browser, on any computer, from anywhere in the world
  • Compatibility with the Keithley IVy mobile app enables true plug & play I/V characterization and test through any Android device
  •  TSP (Test Script Processing) technology embeds complete test programs inside the instrument for bestin-class system-level throughput
  • TSP-Link expansion technology for multi-channel parallel test without a mainframe Software emulation for Keithley’s 2400 SourceMeter SMU Instrument
  • USB 2.0, LXI-C, GPIB, RS-232, and digital I/O interfaces
  • Free software drivers and development/debug tools
  • Optional ACS-Basic semiconductor component characterization software
