2657A

κωδικός προϊόντος: 2657A

Κατασκευαστής: Tektronix/ Keithley


Εκδήλωση Ενδιαφέροντος

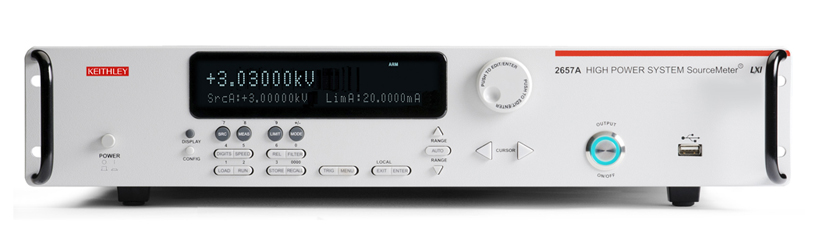

High Power System SourceMeter

Channels 1, Max Current Source/Measure Range 120mA, Max Voltage Source/Measure Range 3000V, Measurement Resolution (Current / Voltage) 1fA/100nV, Power 180W.

         Key Features

  • Source or sink up to 180 W of DC or pulsed power (±3000 V @ 20 mA, ±1500 V @ 120 mA).
  • 1 fA low current resolution.
  •  Dual 22-bit precision ADCs and dual 18-bit 1 µs per point digitizers for high accuracy and high speed transient capture.
  • Fully TSP® compliant for easy system integration with Series 2600B System SourceMeter models.
  • Combines a precision power supply, current source, DMM, arbitrary waveform generator, V or I pulse generator, electronic 18-bit load, and trigger controller – all in one instrument.
  • Includes TSP® Express characterization software, LabVIEW® driver, and Keithley’s Test Script Builder software development environment.

Κατεβάστε το PDF με τα τεχνικά χαρακτηριστικά
