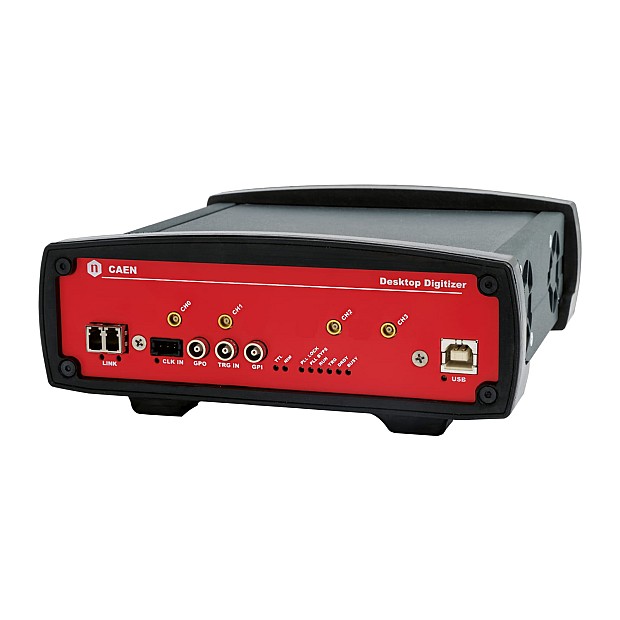

DT5724
κωδικός προϊόντος: DT5724 Κατασκευαστής: Caen
Εκδήλωση Ενδιαφέροντος
2/4 Channel 14 bit 100 MS/s Digitizer
- 14 bit @ 100 MS/s
- Analog input on MCX coaxial connector (50 Ohm, single-ended)
- 2/4 channels, Desktop module
- 2.25 Vpp single-ended input range (500 mVpp & 10 Vpp on request) with programmable DC offset
- Sampling rate decimation factor (Waveform Recording firmware only)
- Algorithms for Digital Pulse Processing:
- Pulse Height Analysis (DPP-PHA)
- Dynamic Acquisition Window (DPP-DAW)
- Zero Suppression (Waveform Recording Firmware)
- Time-stamped Waveform and List
- USB and Optical Link communication interfaces
- Multi-board synchronization features
- Daisy chain capability
- Compliant with CoMPASS, MC2Analyzer, DPP-DAW Demo Software, CAENScope, CAEN WaveDump, C and LabVIEW libraries
