IFR 4000

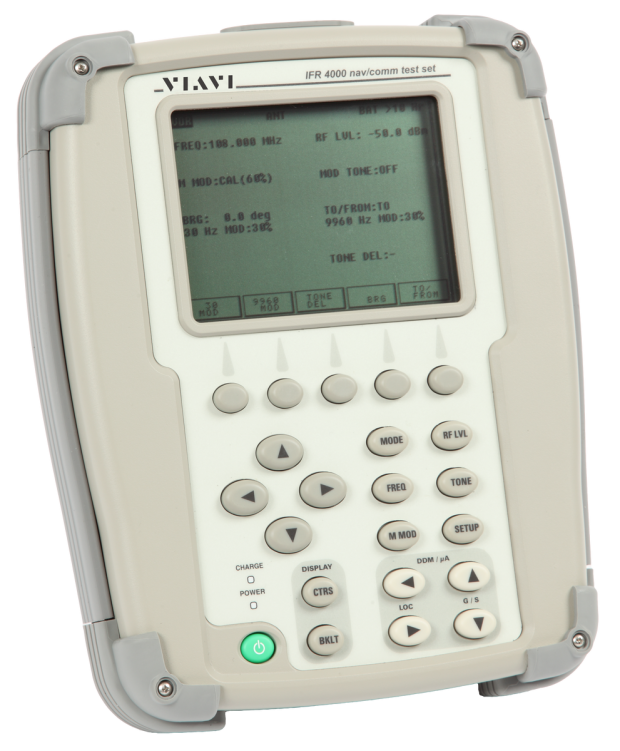

IFR 4000 Nav/Comm Flight Line Test Set

Equips the maintenance technician with the most portable nav/comm ramp test set on the market today

• Key Features:
• Accurate measurement of 121.5/243 MHz emergency beacon transmitter frequency, output power, modulation (AM). Headphone audio output to monitor swept tone *
• Accurate measurement of 406 MHz COSPAS/SARSAT emergency beacon transmitter frequency, output power. Decode and display of all location and user protocols *
• Accurate measurement of HF transmitter, frequency, output power, modulation (AM and SSB USB/LSB) receiver sensitivity
• Accurate measurement of VHF/UHF transmitter, frequency, output power, modulation (AM and FM and receiver sensitivity)
• Generation of ARINC 596 Selective Calling Tones
• Accurate measurement of VHF/UHF antenna and or feeder SWR (Standing Wave Ratio)
• Simulation of Localizer and Glideslope (CAT I, II and III) signals with variable DDM settings
• Swept Localizer DDM for coupled Auto Pilot testing (Simultaneous Localizer, Glideslope and Marker signals)
• Simulation of Marker Beacon, Selectable Airways (Z), Outer and Middle Marker Tones
• Guided Test capability cuts down total test time
• Low cost ELT option
• Frequency counter provides external frequency measurement
• MORSE CODE provides 1-4 characters transmitted in the VOR and ILS localizer mode
• Eight or more hours of operation before recharge
• Automatic power shut-down
• Ergonomic design
