891

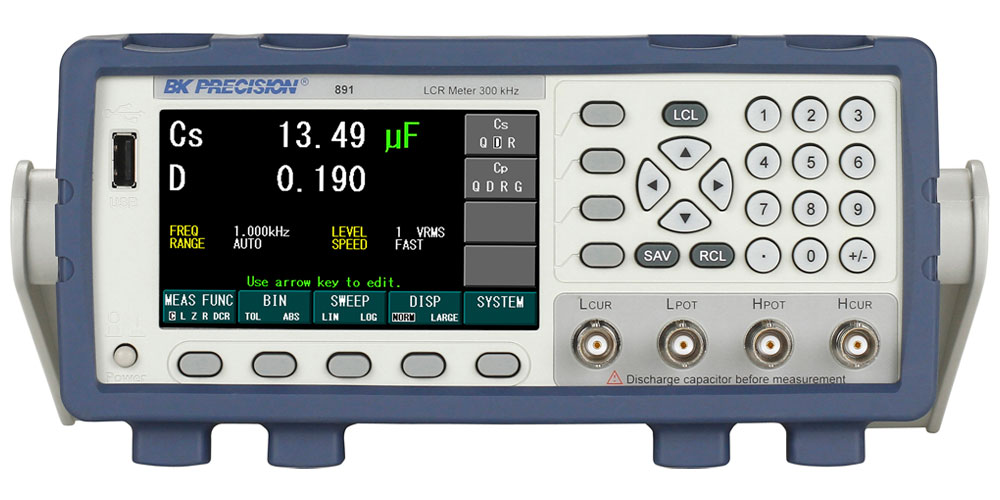

300kHz Bench LCR Meter

Features & Benefits:

• Compact 2U half-rack form factor with 4.3” color display
• 0.05% best impedance accuracy
• Measurement parameters include: C/L/R/G/B/Y/D/Q/θ/DCR
• Fully adjustable test frequency from 20 Hz to 300 kHz with 4-digit resolution
• 0.5 Vrms and 1 Vrms selectable test levels
• 300-point frequency sweep function
• Bin sorting function - 9 primary bins with a secondary and out-of-spec bin
• Adjustable measurement speed for fast readout or better accuracy
• Standard USB, GPIB, and LAN interface for remote control
•  Save/recall up to 100 setups including 1000 measurements and screenshots
