891
κωδικός προϊόντος: 891 Κατασκευαστής: B&K Precision
2.132,80€στην τιμή συμπεριλαμβάνεται ΦΠΑ

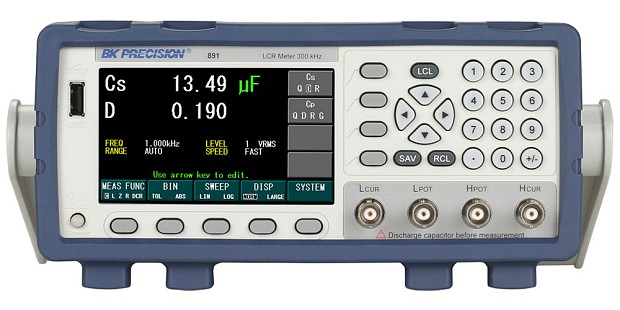

300kHz Bench LCR Meter
Features & Benefits:
- Compact 2U half-rack form factor with 4.3” color display
- 0.05% best impedance accuracy
- Measurement parameters include: C/L/R/G/B/Y/D/Q/θ/DCR
- Fully adjustable test frequency from 20 Hz to 300 kHz with 4-digit resolution
- 0.5 Vrms and 1 Vrms selectable test levels
- 300-point frequency sweep function
- Bin sorting function - 9 primary bins with a secondary and out-of-spec bin
- Adjustable measurement speed for fast readout or better accuracy
- Standard USB, GPIB, and LAN interface for remote control
- Save/recall up to 100 setups including 1000 measurements and screenshots
Κατεβάστε το PDF με τα τεχνικά χαρακτηριστικά Κατεβάστε το PDF με τα τεχνικά χαρακτηριστικά
