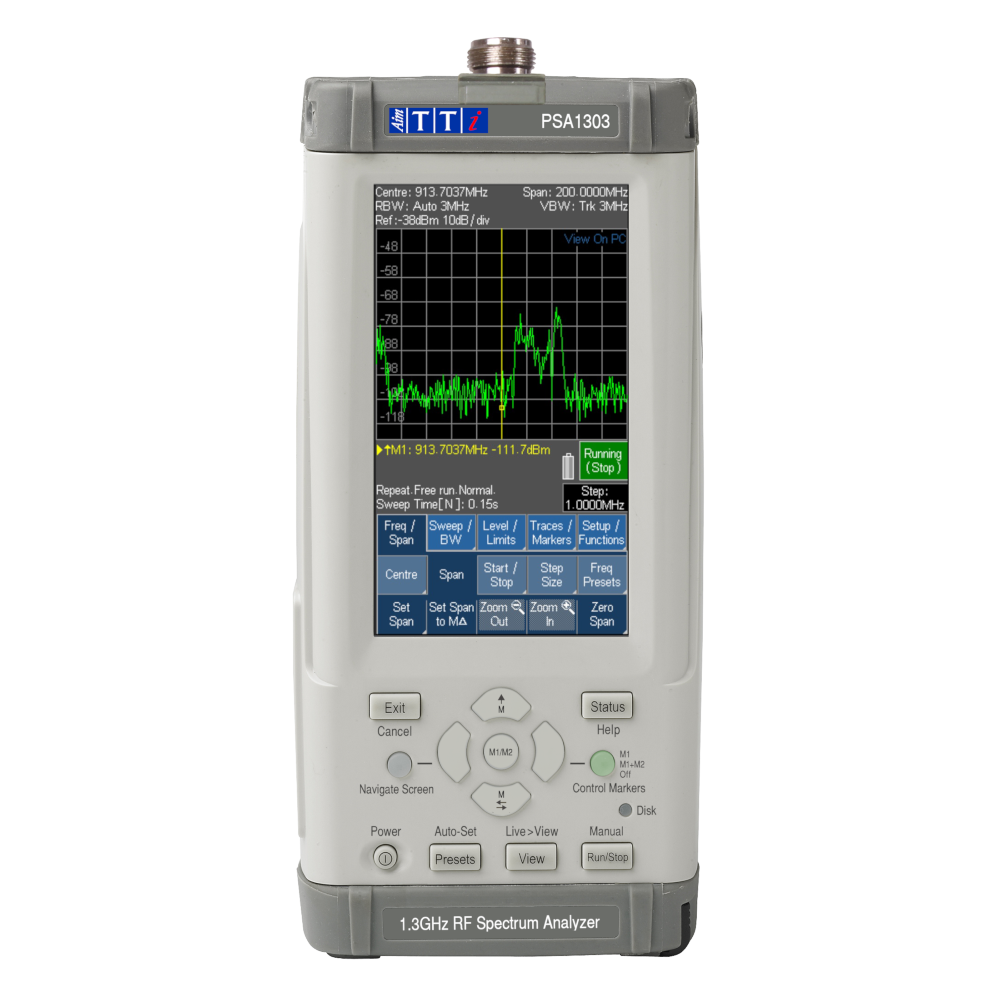

PSA1303USC

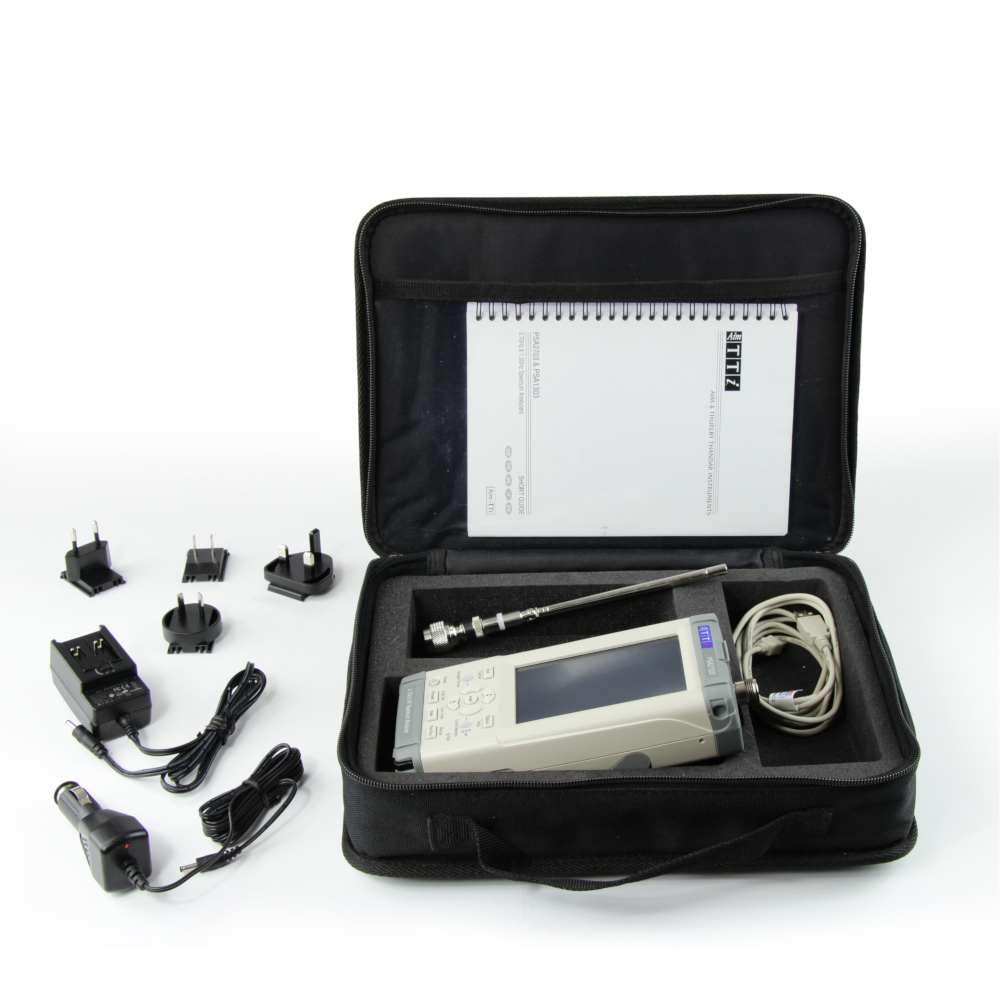

Handheld RF Spectrum Analyzer 1.3GHz, with Option U01, Case and Accessories

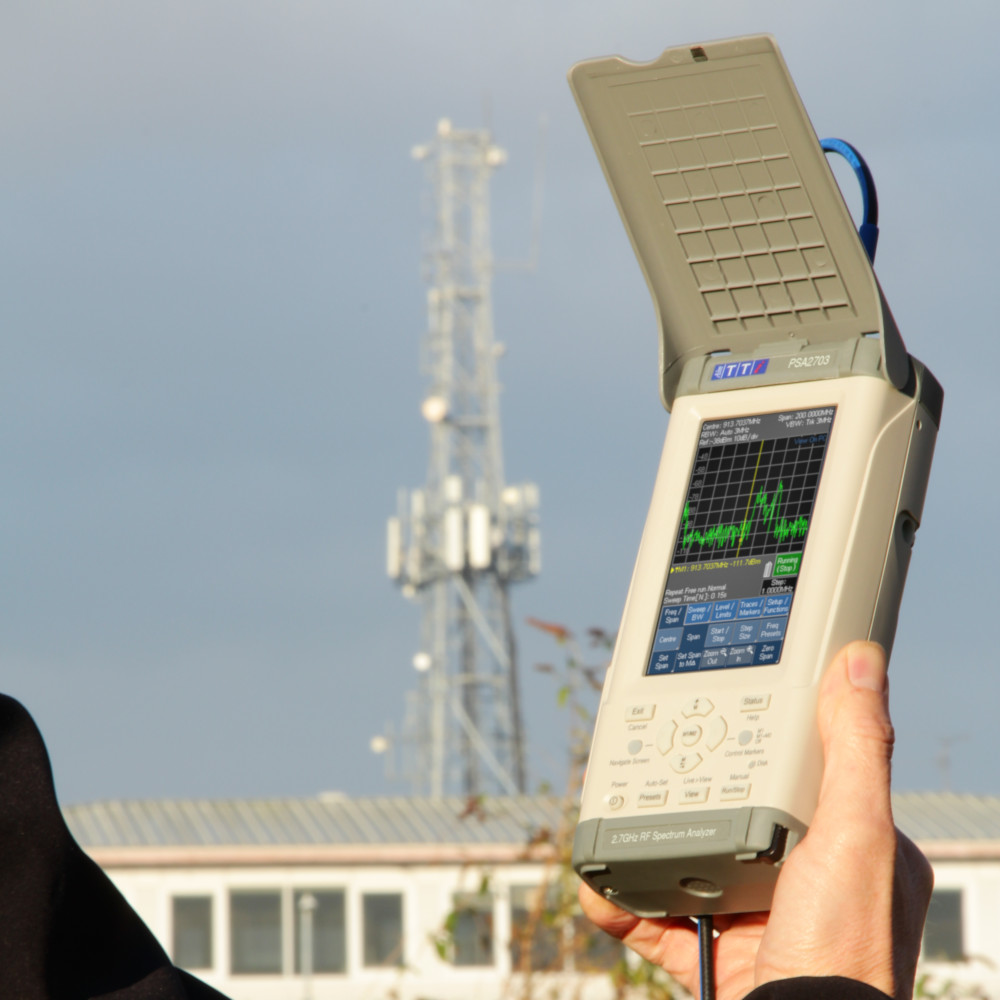

True handheld battery powered RF spectrum analyzers

• 1MHz to 1300MHz or 2700MHz frequency range
• Resolution bandwidths of 300Hz to 10MHz 1:3:10
• -105dBm typical noise floor at -40dBm reference level
• Measurement in dBm or dBμV, mV or μW
• Zero span mode with AM and FM audio demodulation
• Trace modes of normal, peak hold and trace average
• Live, View (copy) and Reference traces in contrasting colours
• Twin markers with readout of absolute & difference values
• Smart marker movement with selectable peak tracking
• Frequency counter with 10Hz Resolution
• Frequency presets and independent state storage
• Auto-find automatically sets sweep parameters for the highest signal found
• Unlimited storage for waveforms, set-ups and screens
• User assignable file names, file stamping from real-time clock
• USB interfaces for Flash drives and PC connection
• Comprehensive status and context sensitive help screens
• More than 3 hours continuous operation from a charge
• Smaller and lighter than other spectrum analyzers (weight only 0.58 kg)
