LD400

κωδικός προϊόντος: LD400

Κατασκευαστής: AimTTi


Εκδήλωση Ενδιαφέροντος

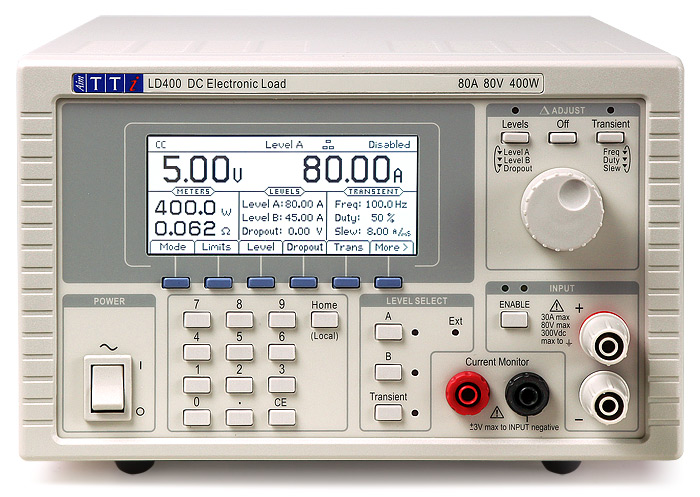

Electronic DC Load, 80V, 80A, 400W with analogue control interface only

  • ersatile solution for testing dc power sources
  • Constant current, resistance, conductance, voltage and power modes
  • Wide voltage and current range, 0 to 80V and 0 to 80A
  • 400 watts continuous dissipation at 28°C (360W at 40°C)
  • 600 watts short-term dissipation (up to 60 seconds)
  • Low minimum operating voltage of <1V at 40A
  • High resolution and accuracy for level setting
  • Built-in transient generator with variable slew
  • Current monitor output for waveform viewing
  • Variable drop-out voltage for battery testing
  • High resolution backlit graphic LCD with soft key control
  • Analogue remote control of levels and TTL control of on/off and transient switching
  • Front and rear input terminals (front terminals 30A max.)
