3200S

κωδικός προϊόντος: 3200S

Κατασκευαστής: Huntron


Εκδήλωση Ενδιαφέροντος

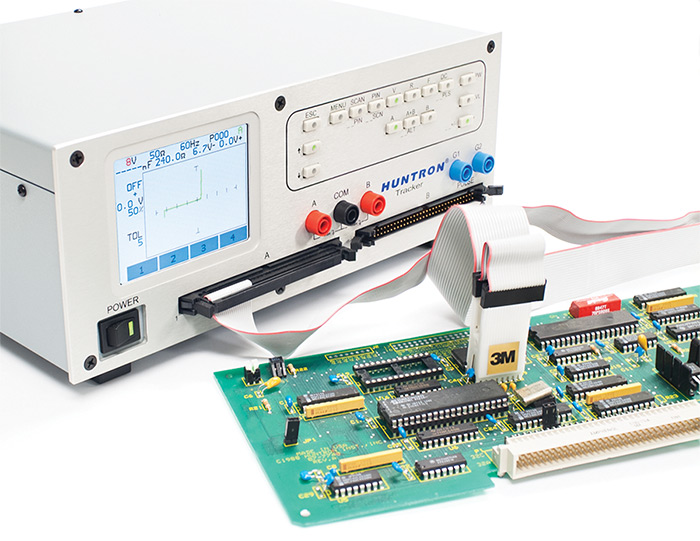

Huntron® Tracker®3200S:
  • Add the benefits of Power-Off test to your current diagnostic test strategy
  • Can be used as a Stand-alone unit using the convenient front panel controls and touch screen LCD
  • Match the circuit impedance by setting the applied voltage, frequency and source resistance
  • Built-in Pulse Generator for testing gated devices such as relays, SCRs and TRIACs
  • 128 pin scanning with 128 Commons using the built-in front panel IDC ribbon cable connectors
  • Display A or B channels individually, in the switching ALT mode or in A+B mode to display both signatures at the same time
  • Connect to a Huntron Access Prober for full test automation
  • Use the Huntron Workstation software to create circuit board tests, store analog (V-I) signatures, make good vs. bad comparisons and present the results
  • Having the Good board signatures stored on your PC eliminates the need to keep one for direct comparison
  • A software based test allows for the sharing of board test knowledge with all personnel

Κατεβάστε το PDF με τα τεχνικά χαρακτηριστικά
