Miniflow:

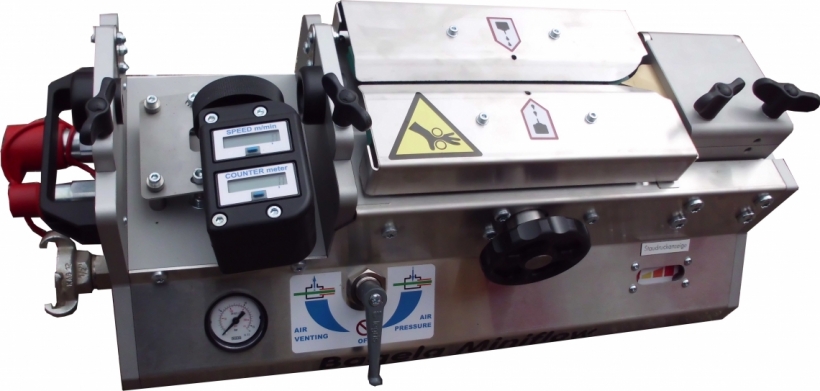

The Miniflow is used for blowing in fibre optic cables from 4 up to 11 mm into ducts from 7 up to 20 mm. The Miniflow has a robust and compact design and is very simple to operate. The drive chains are propelled by two low-wear and low-noise hydraulic motors which enable for- and backward movement of the cable.
Technical Data: |
|
max. speed: |
80 m/min |
required air flow: |
1 m³/min |
required air pressure: |
15 bar |
Control unit and Power Pack |
(125 bar / 15 l/min) essential |
Especially for thinner cables there is a danger of compression. The manometer at the afloat bedded blowing junction unit indicates sequentially the rise of the friction forces between pipe and cable what enables an immediate reaction with increasing the aerial amount or a reducing the pushing speed.
