6221

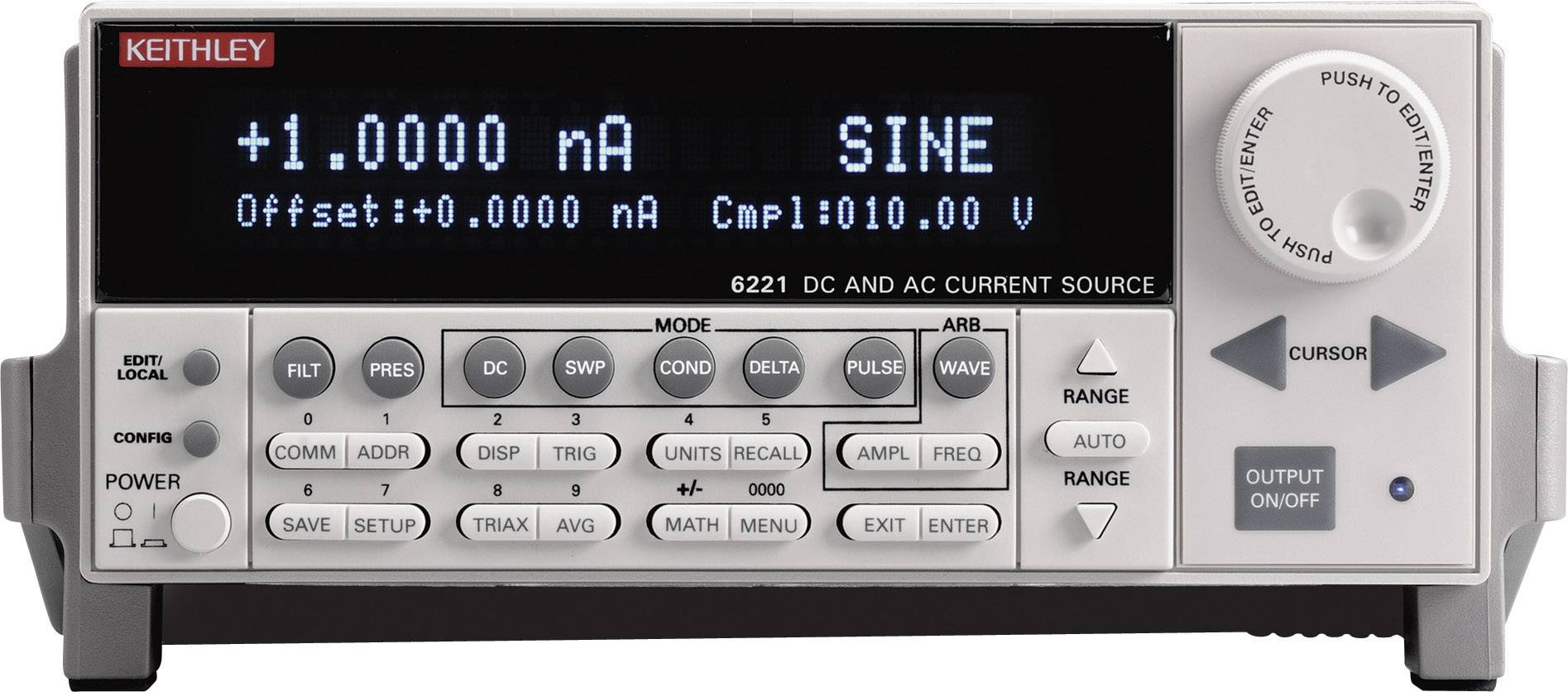

DC Current Source AC and DC Current Source

         Features

• 1014Ω output impedance
• 65000-point source memory
• Output voltage compliance from 0.1V to 105V in 10mV steps
• Source AC currents from 4pA to 210mA peak to peak
• 10MHz output update rate
•  Built-in standard and arbitrary waveform generators with 1mHz to 100kHz frequency range
•  Programmable pulse widths as short as 5μs
• Reconfigurable triax output
