DAS1800
κωδικός προϊόντος: DAS1800 Κατασκευαστής: B&K Precision
Εκδήλωση Ενδιαφέροντος
Features and benefits
- Stream 40 channels at 1 MSa/s/ch
- Up to 80 analog inputs with D18-MUX8 multiplexed module
- Measure up to ± 600 VDC

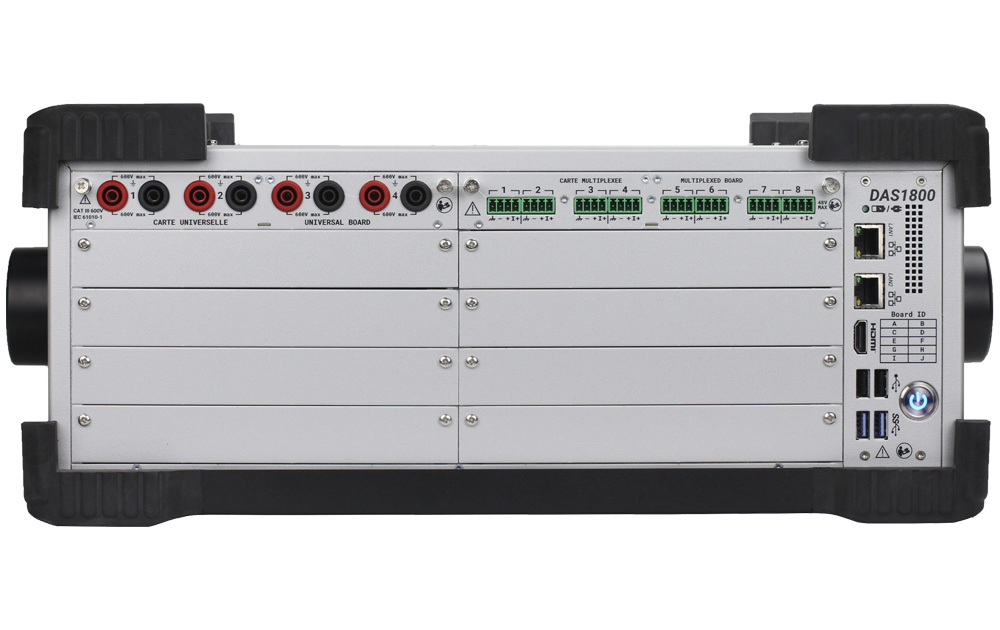

- 10 slots and 3 measurement modules available: Universal (4 ch), Multiplexed (8 ch), High Impedance (4 ch)
- Temperature measurements with thermocouples and RTDs
- Store sensor information and parameters in the sensor library
- Simultaneous recording at multiple sample rates (up to 4)
- Internal signal conditioning with analog and digital filters

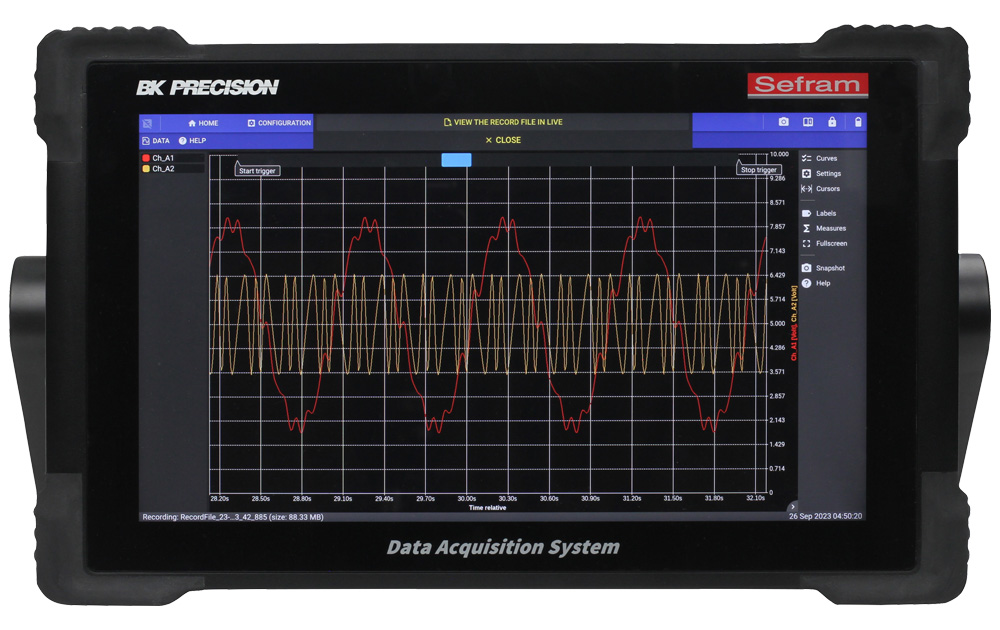

- 15.6" Full HD touchscreen display
- 2 TB internal SSD (standard)
- Advanced calculations and automatic measurements
- Battery option (up to 3.5 hours of operation)

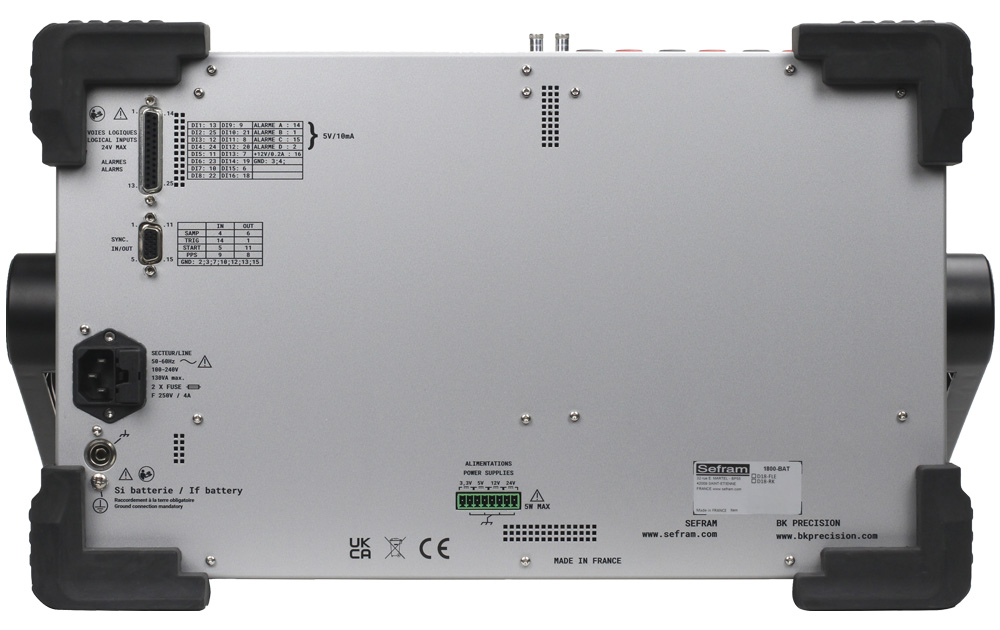

- 16 digital input channels (24 V) and 4 digital outputs
- Dedicated 5 W power rail for sensors with different voltages : +3.3 V, +5 V, +12 V, +24 V
- USB 3.0 (x2), USB 2.0 (x2), LAN 1 Gbps (x2), and HDMI (x1)
- Rugged carrying case included
Κατεβάστε το PDF με τα τεχνικά χαρακτηριστικά
