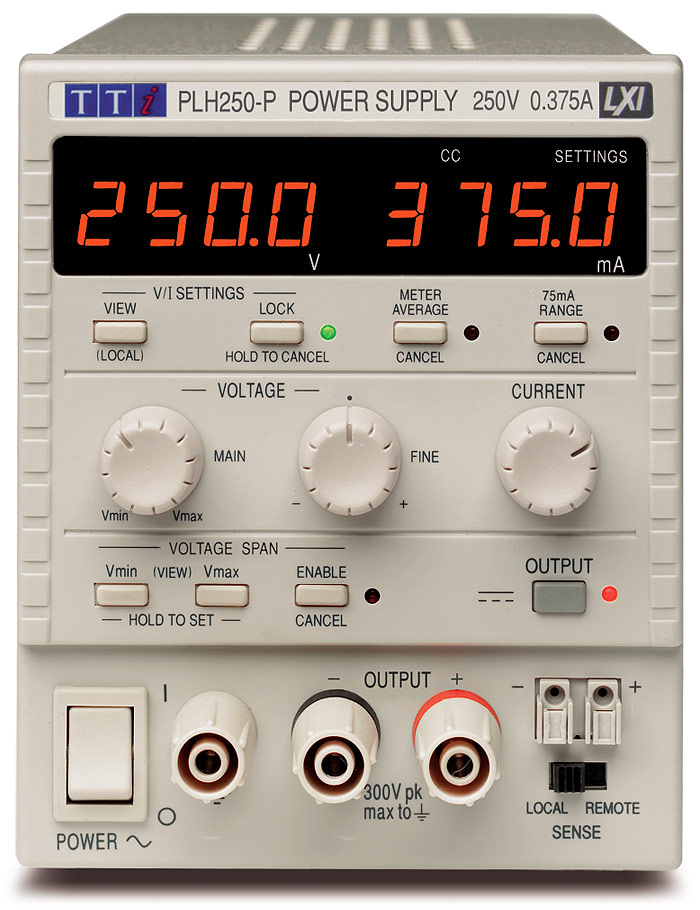

PLH250-P(G)
Product code: PLH250-P(G)
Brand: AimTTiBench/System Higher Voltage DC Power Supply Single 0-250V/0-0.0375A Isolated Analogue, USB, RS232, LAN(LXI) and GPIB interfaces Available
Bench/System Higher Voltage DC Power Supply Single 0-250V/0-0.0375A Isolated Analogue, USB, RS232, LAN(LXI) and GPIB interfaces
Bench/System Higher Voltage DC Power Supply Single 0-250V/0-0.0375A Isolated Analogue, USB, RS232, LAN(LXI) and GPIB interfaces
- Single output 120V 90W or 250V 94W
- Linear regulation - for the best performance
- Ultra-compact design - uses up less space
- True Analogue controls - for ease of use
- S-Lock function - instantly lock settings
- V-Span function - customize the voltage range
- Low current range and current meter averaging
- DC output switches and "view limits" button
- Selectable remote sense terminals
P versions add:
- Full digital remote control and readback
- RS-232, USB and LAN (Ethernet)
- LAN Interface conforms with LXI standard
- IVI Driver supplied
- Interfaces are opto-isolated from outputs
- Isolated Analogue remote control of V and I
- Front and rear terminals
P(G) Version is as P above plus GPIB interface
