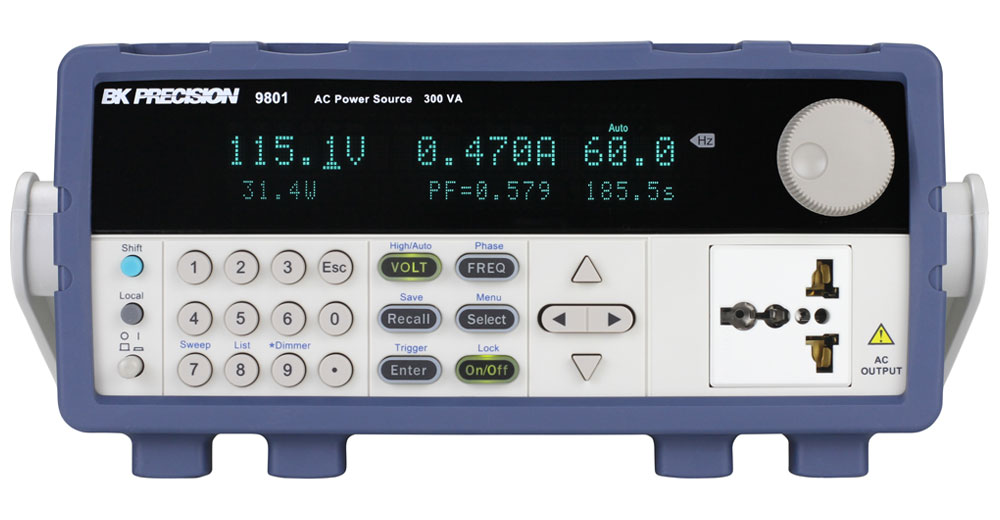

9801

Programmable AC Power Sources

• 0 to 300 V, low distortion AC power source with models delivering a maximum of 1500 VA, 12 Arms / 48 Apeak
• Output frequency adjustable from 45 Hz – 500 Hz
• Select 150 V / 300 V autoranging or 300 V range operation for continuous sweep from 0 - 300 V
• Displays Vrms, Irms, Ipeak, frequency, PF, apparent power, true power, and elapsed output time
• Adjustable phase angle control
• Built-in PLD and dimmer simulation
• Voltage and frequency sweep mode
• Downloadable LabVIEW driver and soft panel software for remote control
• Standard USB (USBTMC-compliant), RS232, and LAN interfaces
• GPIB optional on select models
• Pre-compliance testing for voltage dips and frequency simulation according to IEC61000-4-11 / 4-14 / 4-28
