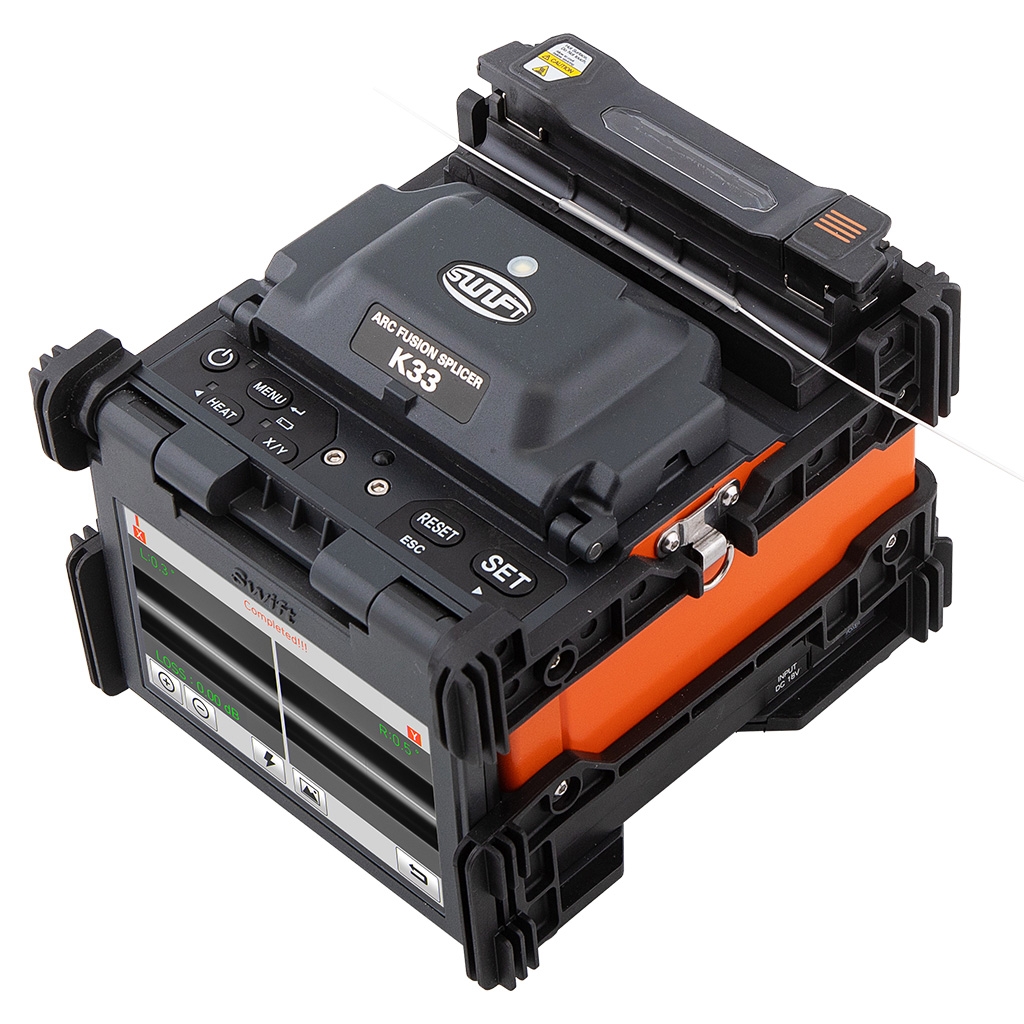

Optical Fiber Arc Fusion Splicer:
Fiber alignment: IPAAS Core Alignment, Fiber cleave length: 250um: 5 ~ 16 mm, 900um: 8 ~ 16 mm, Typical splice loss: SM: 0.02 dB, MM:0.01 dB, DS: 0.04 dB, NZDS: 0.04 dB, Splicing time: Typical 6 seconds (quick mode), Sleeve heating time: 9 sec (IS-45 mode), 13 sec (IS-60 mode), Tension test: 1.96N to 2.25N, Dimensions: 130 (W) x 158 (L) x 138 (H) mm (excluding rubber), Weight: 2.25 kg (including battery), No. of splice cycles with battery: 280 cycles with 4,700mAh & 330 cycles with 6,000mAh, Electrode life: Up to 18,000 splices, Blade life: 77,000 fibers + 33,000 fibers(Adjust the blade height up to 0.12mm), Total 110,000 fibers.
