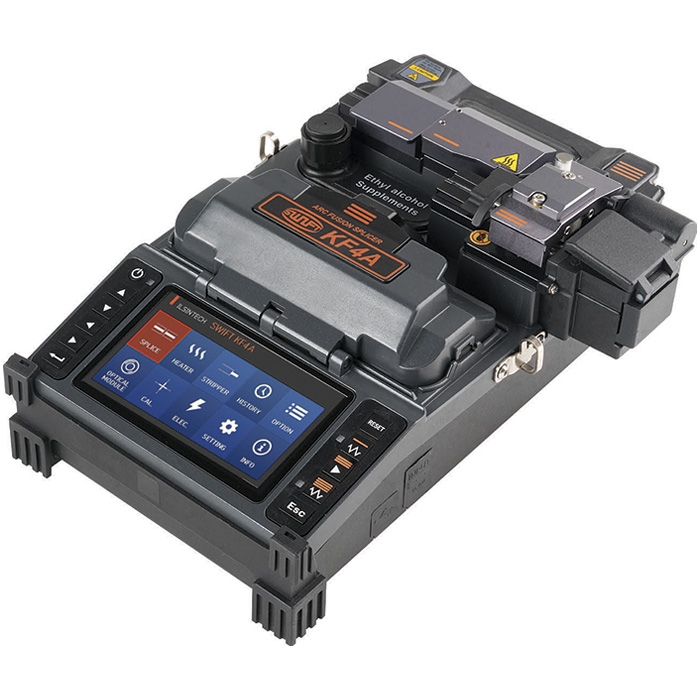

Optical Fiber Arc Fusion Splicer:
Fiber alignment: Active Clad Alignment, Fiber cleave length: 7mm to 16 mm,Typical splice loss: SM: 0.03 dB, MM:0.01 dB, DS: 0.05 dB, NZDS: 0.05 dB, Splicing time: Typical 7 seconds with SM, Sleeve heating time: Typical 13 sec with IS-60 mode, Tension test: 1.96N to 2.25N Dimensions: 132 (W) x 212 (L) x 73 (H) (excluding bumper), Weight: 1.5 kg (including battery), No. of splice cycles with battery: 200 cycles with 3,400mAh, Electrode life: Up to 38,000 splices, Blade life: 77,000 fibers + 33,000 fibers(Adjust the blade height up to 0.12mm), Total 110,000 fibers.
