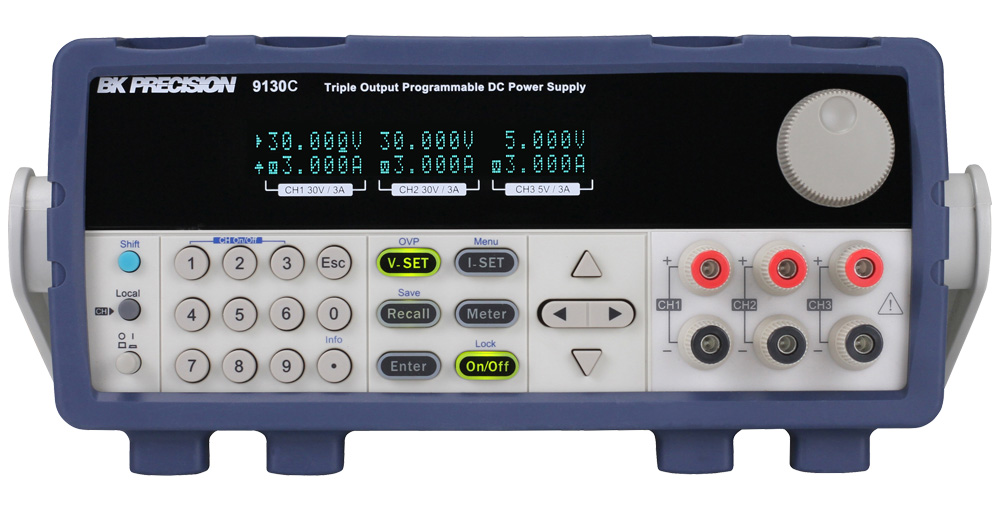

9130C

Triple Output Programmable DC Power Supplies

• Three independent and electrically isolated outputs
• Displays voltage and current settings for all three channels simultaneously
• Low noise, linear regulation
• High programming and readback resolution of 1 mV / 1 mA
• Series and parallel modes combine channels to increase the output voltage or current
• Tracking mode allows users to set up channels to maintain a programmed ratio
• Fully programmable channels with Output On/Off control
• Store and recall up to 36 instrument settings
• Remote sense
• Timer-controlled output function adjustable from 0.1 – 99999.9 s
• Standard USB (USBTMC-compliant) and RS232 interfaces supporting SCPI commands for remote control
• NI certified LabVIEW driver and softpanel for remote control, test sequence generation, and datalogging available
• Overvoltage (OVP) and overtemperature (OTP) protection including keylock function
• Compact 19” half-rack form factor allows for side-by-side rack mounting of two units
