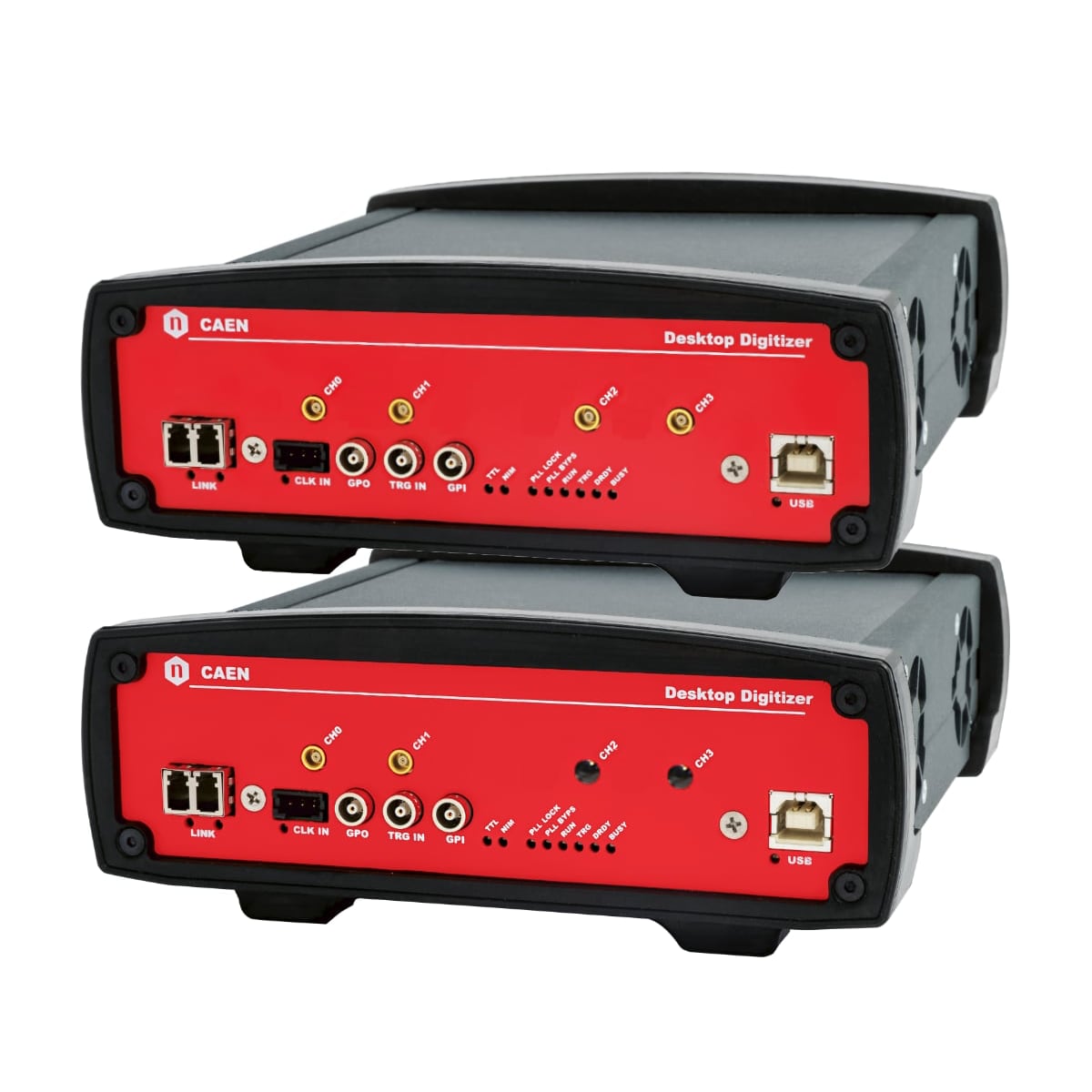

DT5720
κωδικός προϊόντος: DT5720 Κατασκευαστής: Caen
Εκδήλωση Ενδιαφέροντος
4 Channel, 12 bit, 250MS/s Digitizer:
- 12 bit 250 MS/s ADC
- FPGA for real time Digital Pulse Processing:
- Pulse Shape Discrimination (DPP-PSD)
- Zero Suppression (Waveform Recording Firmware)
- 4/2 channels
- MCX input (50 Ohm, single ended)
- 2 Vpp single ended input range
- 16-bit programmable DC offset adjustment: ±1 V
- Trigger Time stamps
- Memory buffer: 1.25 MS/ch or 10 MS/ch
- Programmable event size and pre-post trigger adjustment
- Optical Link interface (CAEN proprietary protocol)
- USB 2.0 interface
- Firmware upgradeable via USB/Optical Link
- Libraries, Demos (C and LabView) and Software tools for Windows and Linux
- External AC-DC Power Supply Adapter (+12 V)
- Dimensions: 154x50x164 mm3 (WxHxD)
