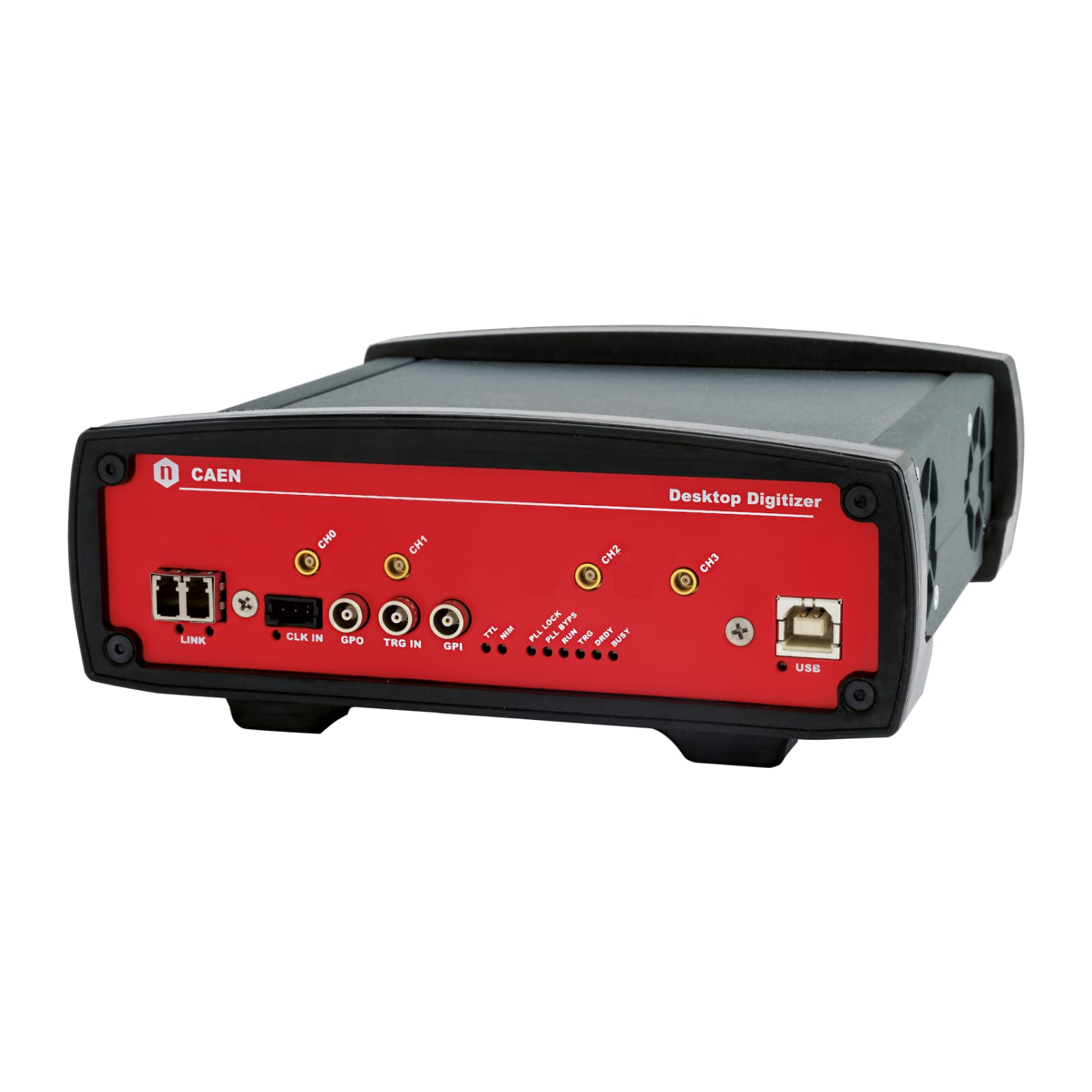

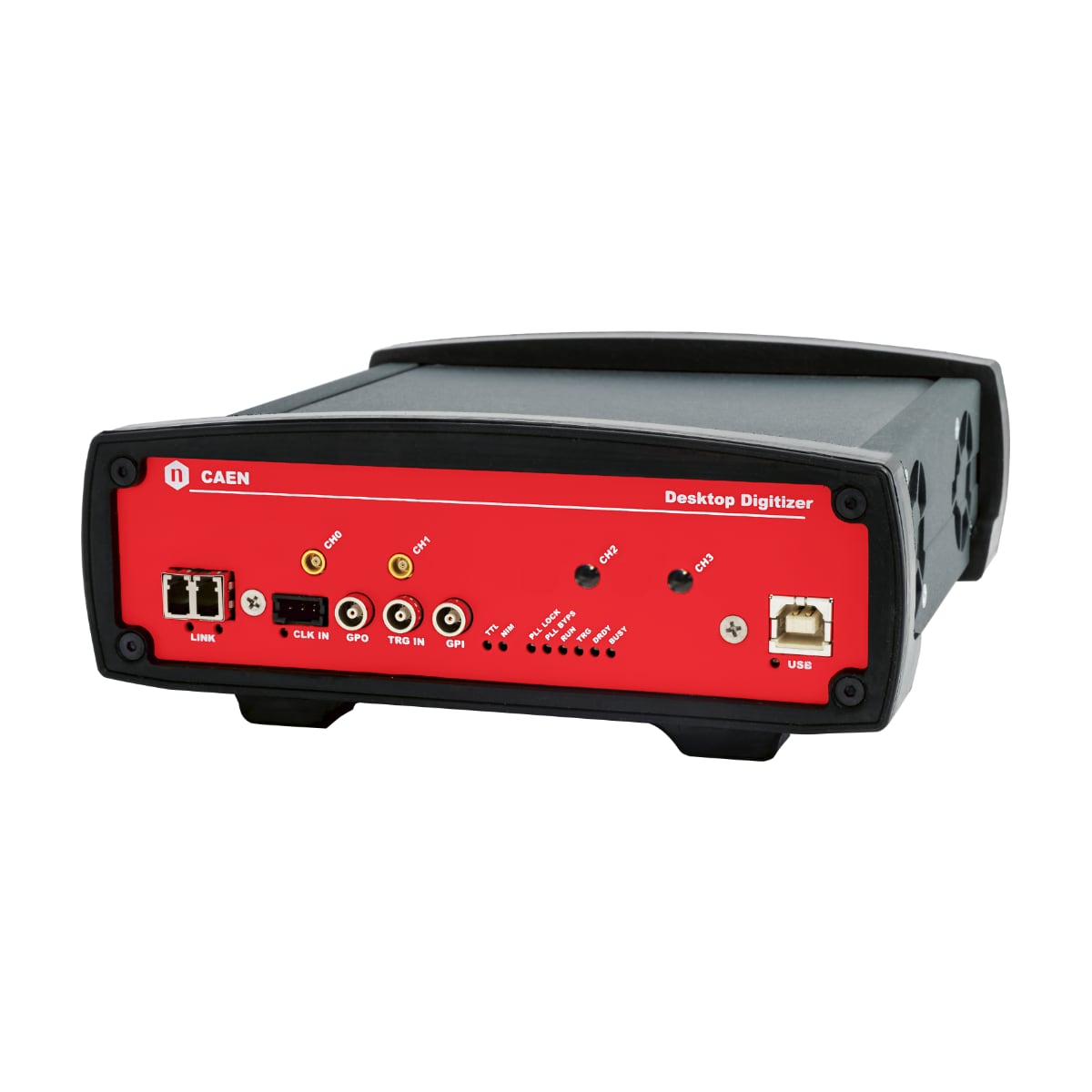

DT5724

2/4 Channel 14 bit 100 MS/s Digitizer

• 14 bit @ 100 MS/s
• Analog input on MCX coaxial connector (50 Ohm, single-ended)
• 2/4 channels, Desktop module
• 2.25 Vpp single-ended input range (500 mVpp & 10 Vpp on request) with programmable DC offset
• Sampling rate decimation factor (Waveform Recording firmware only)
• Algorithms for Digital Pulse Processing:

1.  ​Pulse Height Analysis (DPP-PHA)
2. Dynamic Acquisition Window (DPP-DAW)
3. Zero Suppression (Waveform Recording Firmware)

• Time-stamped Waveform and List
• USB and Optical Link communication interfaces
• Multi-board synchronization features
• Daisy chain capability
• Compliant with CoMPASS, MC2Analyzer, DPP-DAW Demo Software, CAENScope, CAEN WaveDump, C and LabVIEW libraries
