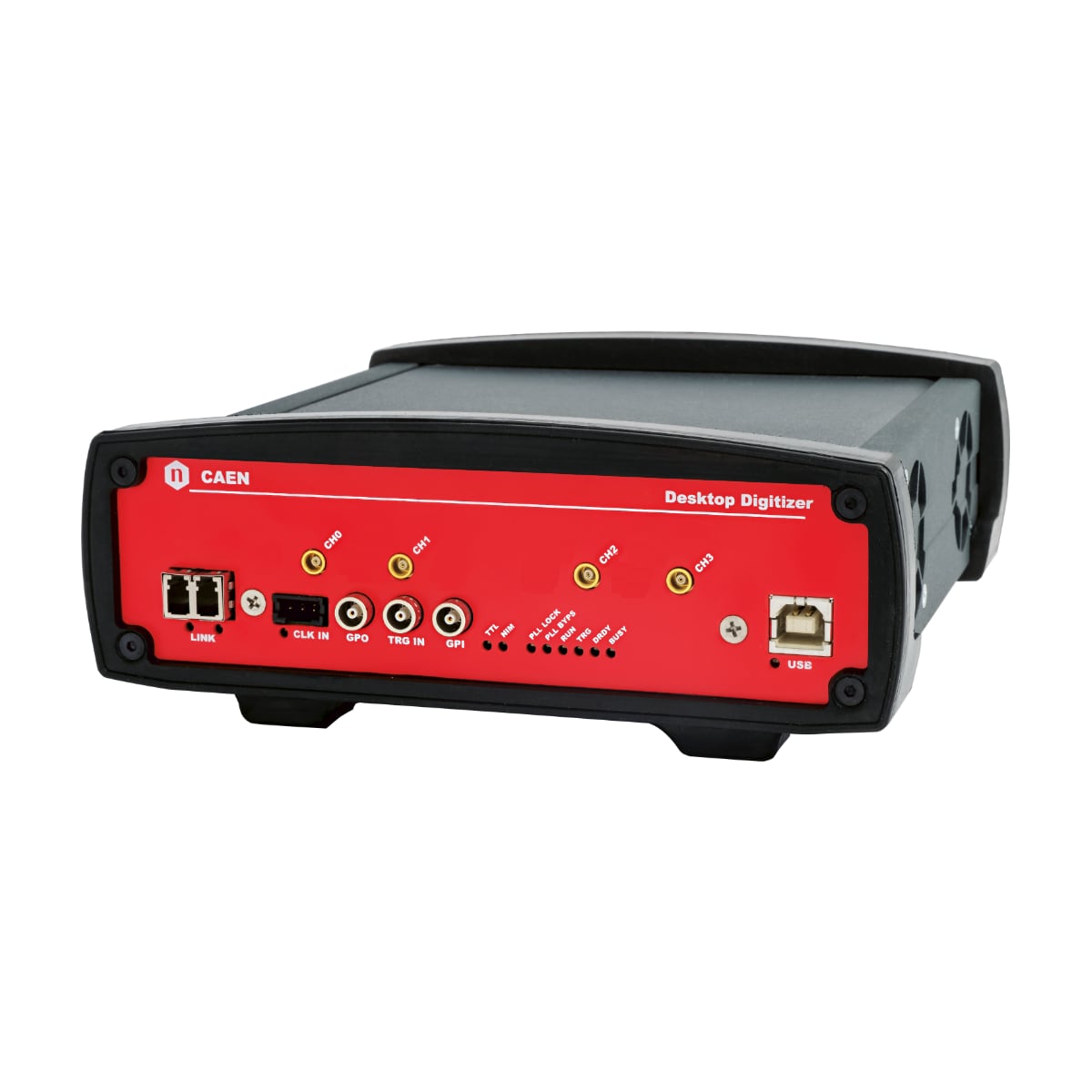

DT5751

2/4 Channel, 10 bit, 2/1 GS/s Digitizer:

• 10 bit @ 2 GS/s (interleaved) or 1 GS/s
• Analog input on MCX coaxial connector (50 Ohm, single-ended)
• 2-4 channels, Desktop module
• 1 Vpp input dynamic range (0.2 Vpp on request) with programmable DC offset
• Algorithms for Digital Pulse Processing:
  • Pulse Shape Discrimination (DPP-PSD)
  • Zero Length Encoding (DPP-ZLEplus)
• Time-stamped Waveform and List
• USB and Optical Link communication interfaces
• Multi-board synchronization features
• Daisy chain capability
• Compliant with CoMPASS, DPP-ZLEplus Demo Software, CAENScope, CAEN WaveDump, C and LabVIEW libraries
